The air cleaner intake allows air to enter the fuel system. Never allow anything to restrict the flow of air into the air cleaner. A restricted air cleaner will reduce performance and increase exhaust emissions.

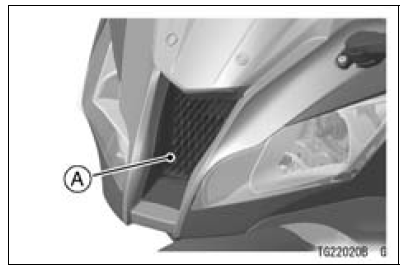

A. Air Cleaner Intake
Tool Kit
Front Footpeg PositionExhaust Butterfly Valve Actuator Sensor Output Voltage Inspection
NOTE
Before this inspection, confirm the pulley is original
position (see Exhaust Butterfly Valve Actuator Installation).
Disconnect:
3 Pins Connector [A] (see Exhaust Butterfly Valve Actuator
Sensor Output Voltage Inspection)
2 Pins Connector [B]
Connect the harness adapter [A ...
Fuel Tank Cap
To open the fuel tank cap, pull up the
key hole cover. Insert the ignition key
into the fuel tank cap and turn the key
to the right.
To close the cap, push it down into
place with the key inserted. The key
can be removed by turning it to the left
to the original position. Close the key
hol ...
Passenger’s Seat Installation
Insert the tab on the rear of the passenger’s
seat into the slot in the
frame.
Insert the projections at the front of
the passenger’s seat into the holes
on the frame.
Push down the front part of the passenger’s
seat until the lock clicks.
A. Passenger’s Seat
B. Proj ...
