Be sure to install the new O-rings [A].
Using a high flash-point solvent, clean off any oil or dirt that may be on the silicone sealant coating area. Dry them with a clean cloth.
Apply silicone sealant to any two positions of the new O -ring.

Sealant - Liquid Gasket, TB1211F: 92104-0004

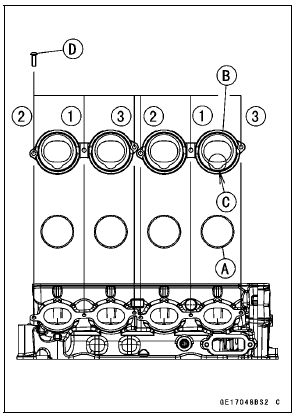

Install the holders [B] as shown in the figure.

Recession [C]
Tighten the holder bolts [D] as shown sequence [1 ∼ 3] in the figure.

Torque - Throttle Body Assy Holder Bolts: 9.8 N·m (1.0 kgf·m, 87 in·lb)

Throttle Body Assy Holder Installation

Throttle Body Assy Holder Removal

Remove: Throttle Body Assy (see Throttle Body Assy Removal in the Fuel System (DFI) chapter) Clamps [A] Loosen the throttle body assy holder bolts as shown sequence [1 3] in the figure, ...
