Kawasaki Ninja Service Manual: Parts Location

Kawasaki Ninja Service Manual / Brakes / KIBS (Equipped Models) / Parts Location

NOTE

The front and rear wheel rotation sensors and rotors are standard parts of this motorcycle.

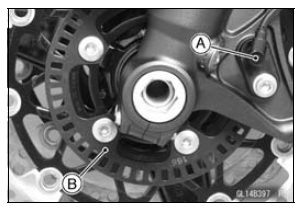

Front Wheel Rotation Sensor [A] Front Wheel Rotation Sensor Rotor [B]

Parts Location

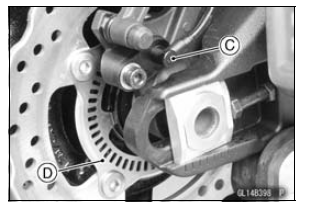

Rear Wheel Rotation Sensor [C] Rear Wheel Rotation Sensor Rotor [D]

Parts Location

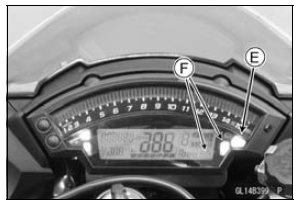

ABS Indicator Light (LED) [E] KIBS Indicator Light (Yellow LED with KIBS Symbol) [F]

Parts Location


KIBS Hydraulic Unit [G]

Parts Location

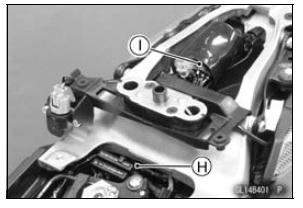

Fuse Box 3 [H] KIBS Kawasaki Self-Diagnosis System Connector [I]

Parts Location


KIBS (Equipped Models)
...

KIBS System Circuit
1. Ignition Switch 2. Front Wheel Rotation Sensor 3. Front Brake Light Switch 4. Joint Connector C 5. Joint Connector D 6. ECU 7. Rear Wheel Rotation Sensor 8. Rear Brake Light Switch 9. B ...
