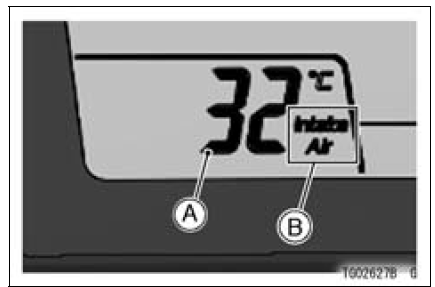

Intake air temperature meter indicates temperature of the air in the air cleaner case.
The “Intake Air” is displayed if the intake air temperature meter is selected.
A. Intake Air Temperature Meter
B. “Intake Air”
NOTE
The intake air temperature meter shift to the coolant temperature meter automatically if the coolant temperature rises to above 115°C (239°F). In this case, the meter cannot be shifted to the intake air temperature meter until the red warning indicator light goes off.
Coolant Temperature Meter
Gear Position IndicatorExternal Shift Mechanism Inspection
Examine the shift shaft [A] for any damage.
If the shaft is bent, straighten or replace it.
If the serration [B] are damaged, replace the shaft.
If the spring [C] is damaged in any way, replace it.
If the shift mechanism arm [D] is damaged in any way,
replace the shaft.
Check the s ...
Radiator and Radiator Fan Installation
If the radiator bracket [A] was removed, install it.
Install the radiator fan to the radiator
Tighten the radiator fan mounting bolts.
When installing the pad [B], install it so that the upper end
of the pad aligns with the corner top [C].
When install the pad [D], install it so that the ...
Intake Air Temperature Sensor Resistance Inspection
Remove the intake air temperature sensor (see Intake Air
Temperature Sensor Removal).
Suspend the sensor [A] in a container of machine oil so
that the heat-sensitive portion is submerged.
Suspend a thermometer [B] with the heat-sensitive portion
[C] located in almost the same depth with ...
