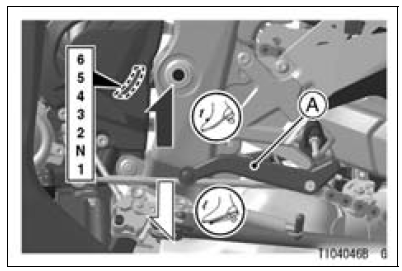

A. Shift Pedal
NOTE
Jump starting
Shifting GearsDFI Power Source
ECU Fuse Removal
Refer to the 30 A Main/15 A ECU Fuse Removal in the
Electrical System chapter.
ECU Fuse Installation
If a fuse fails during operation, inspect the DFI system to
determine the cause, and then replace it with a new fuse
of proper amperage.
Refer to the Fuse Installation in ...
Exhaust Butterfly Valve Actuator Sensor Resistance Inspection
Turn the ignition switch to OFF.
Disconnect the exhaust butterfly valve actuator sensor
connector (3 pins connector) [A] (see Exhaust Butterfly
Valve Actuator Sensor Input Voltage Inspection).
Connect a digital meter [B] to the exhaust butterfly valve
actuator sensor connector.
Measur ...
Cylinder (Upper Crankcase) Wear Inspection
Split the crankcase (see Crankcase Splitting).
Remove the pistons (see Piston Removal).
Assemble the cylinder (upper crankcase) [A], the cylinder
head [B] and the cylinder head gasket [C].
Tighten the cylinder head bolts (see Cylinder Head Installation
in the Engine Top End chapter).
...
